120Amps Plasma Cutter , Cuts 2" side cut plate steel , Pierces 1.75" steel plate.
CNC table ready , PowerEdge120 include:
1. 1pc Remote amperage pendant control and remote cable,
2. 1pc Air regulator.
3. 1pc Hose.
4. 1pc Ground clamp with cable.
5. 10pcs plasma cut torch consumables.
Optional:

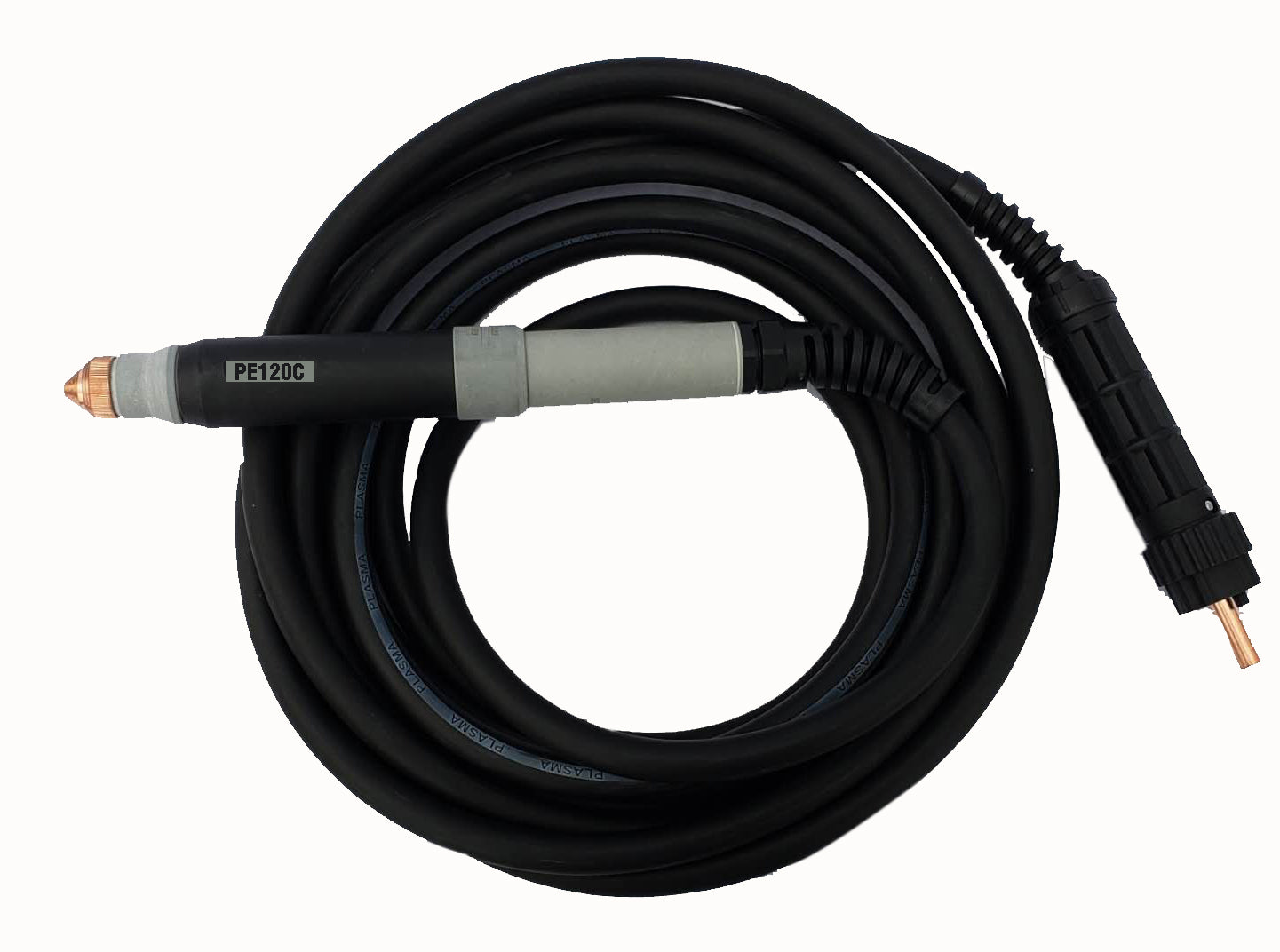

6. 1pc CNC plasma cut torch 30ft. (Custom lengths available up to 60 foot CNC straight torchs, custom torch configurations and triggering options available , call for info.)
7. 1pc CNC plasma control cable , 25ft.
8. 1pc Handheld torch cable , 25ft.
That's the monster poweredge cutter 120 blowback no frequency ignition, does not harm electronics computers or servo motor drives used on CNC tables
220volt single phase
Needs 200 amp power supply
Can edge cut begin 2” thick steel or better
Can pierce 1.5” to 1.75” thick steel on the table.
Lcd color display read out
Displays
Amperage
Psi air pressure flowing psi
Voltage vac
Trigger manual cnc or tap on tap off modes
Internal temperature of cutter
Operating bolt
100% duty cycle at full 120 amp for non stop cutting
5 year warranty covers internal machine components.
Circuit boards are sealed against , moisture, dirt , metal dust , salt air corrosion mist , dust , thermal shocks, and scratches that could corrode, short circuit, sealed boards insulates against high-voltage arcing, shorts, and static discharges, sealed circuit boards improves reliability, operational range, and sealed circuit boards lengthens the life of the electrical and electronic components within the Poweredge Cutters to give you years of flawless non stop performance .
